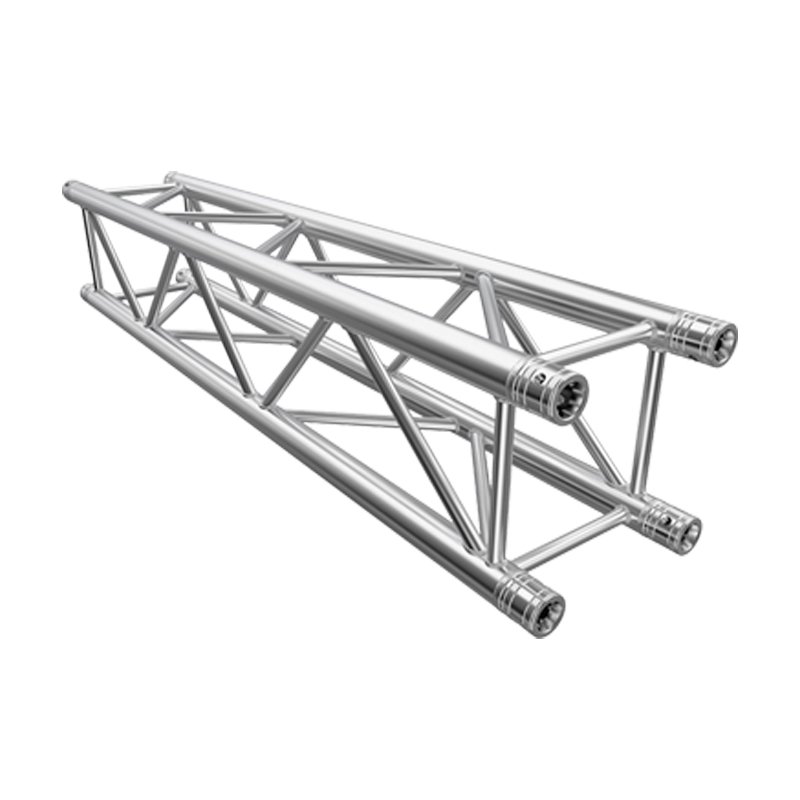

290*290mm Square Aluminum Spigot Truss

The BT34 truss line is our best seller. Impressive loading characteristics and relatively small dimensions of this product line means that this truss can be used for creating simple support beams, large grids, roof systems, tradeshow booths and much more.Its loading charts are certified by TÜV SÜD .

OKIN Arch Fender Specification

Size	L	L1	H	h	B	B3	B2	B1	f	e	C	b	a	Q	n
KDA150	1000	1075	150	22.5	98	96	300	240	55	25	110	95	50	855	2
	1500	1575	150	22.5	98	96	300	240	55	25	112.5	95	50	675	3
	2000	2075	150	22.5	98	96	300	240	55	25	215	95	50	620	4
	2500	2575	150	22.5	98	96	300	240	55	25	220	95	50	785	4
	3000	3075	150	22.5	98	96	300	240	55	25	215	95	50	715	5
	3500	3575	150	22.5	98	96	300	240	55	25	220	95	50	671	6
KDA200	1000	1100	200	30	145	128	400	320	75	29	120	105	58	860	1
	1500	1600	200	30	145	128	400	320	75	29	120	105	58	680	2
	2000	2100	200	30	145	128	400	320	75	29	120	105	58	620	3
	2500	2600	200	30	145	128	400	320	75	29	122.5	105	58	785	3
	3000	3100	200	30	145	128	400	320	75	29	120	105	58	715	4
	3500	3600	200	30	145	128	400	320	75	29	120	105	58	672	5
KDA250	1000	1125	250	33	164	160	500	410	90	32	130	125	64	865	1
	1500	1625	250	33	164	160	500	410	90	32	132.5	125	64	680	2
	2000	2125	250	33	164	160	500	410	90	32	132.5	125	64	620	3
	2500	2625	250	33	164	160	500	410	90	32	127.5	125	64	790	3
	3000	3125	250	33	164	160	500	410	90	32	132.5	125	64	715	4
	3500	3625	250	33	164	160	500	410	90	32	130	125	64	673	5
